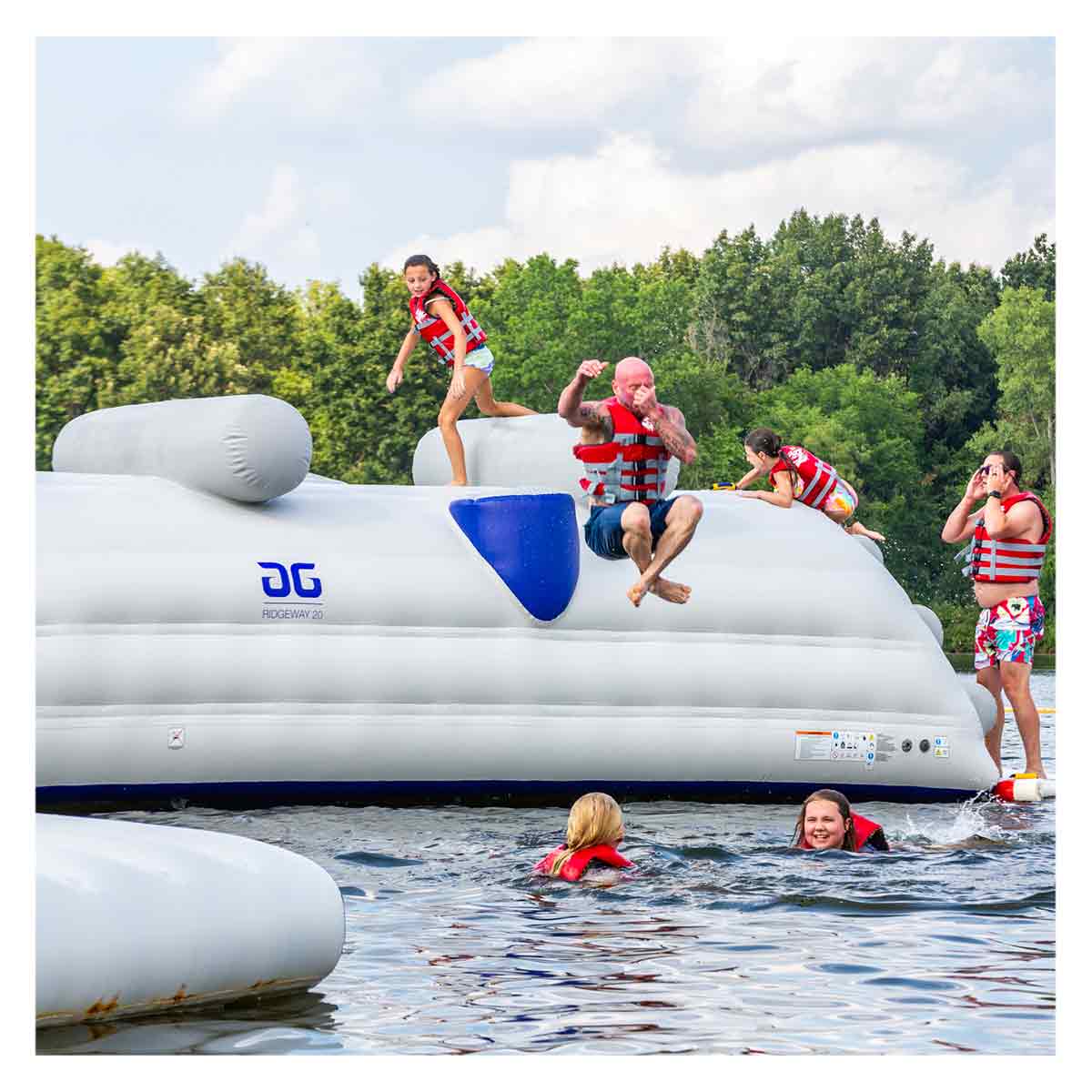

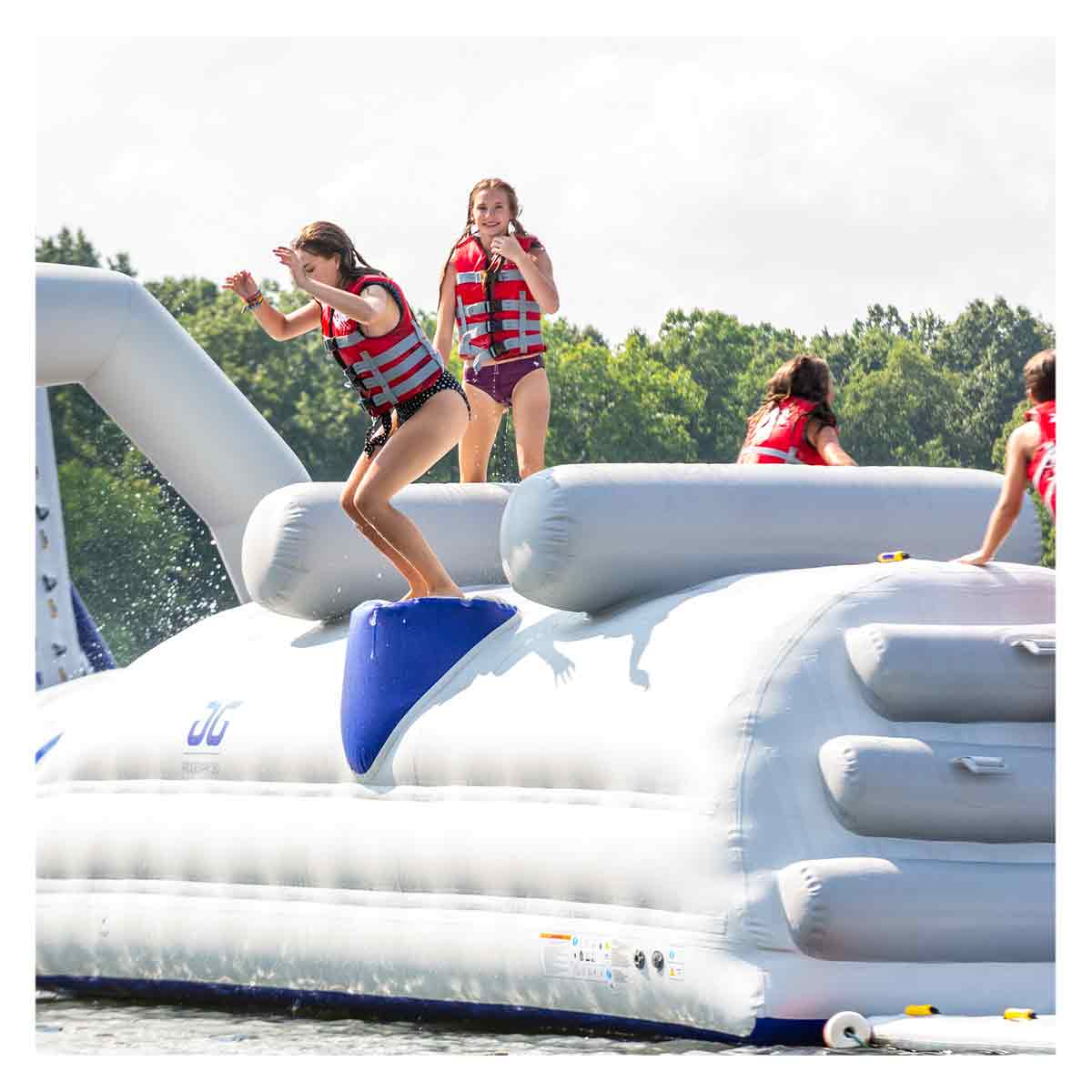

The Ridgeway 20 Aquapark is a track obstacle that brings its own style of climbing, jumping and balance challenges to the 20-foot track footprint. A quick scramble to the top presents myriad options. Even those planning to head across the two balance logs and straight for the climb down are drawn by the "stump" jumping platforms and logs, making this one of the most "session-able" 20-foot features in the range. Used to promote continuous play as part of an aquapark track run, Ridgeway 20 connects to other Aquaglide features on 2 sides using the Interlock D-Ring system.

Works with all Aquaglide Aquapark Series configurations or as a standalone feature.

Features

• Double I-Beam: Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Tubular: Integrates welded structural tube construction with 3-layer seams.
• Duratex Cx3: Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
• Tritex Cx3: Uniquely textured version of our Duratex material adding grip and cooling attributes.
• Interlock 5: 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves: With tamper-proof cap for quick, effective inflation/ deflation.
• PRV: Pressure relief valve to help protect against catastrophic over-inflation.

Key User Activities

• Climb: Two integrated novice climbing lines allow users to climb or descend.
• Jump: Two dedicated stump jumping stations add to the excitement.
• Bounce: Offers a bounce element to keep things lively.
• Balance: Includes a challenging balance element to keep users on their toes.
• Obstacle: Presents an obstacle challenge which adds to the fun.

Technical Specifications

• Max Weight: 800 lb. (363 kg) max weight
• Capacity: 4 Adults / 4 Children
• Weight: 340.8 lb. (154.6 kg)
• Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
• Dimensions: 20’-0” L (610 cm) x 8’-0” W (244 cm) x 6’-0” H (183 cm)
• Minimum Required Water Depth: 6’0” (1.82 m)
• Minimum Distance from Shore: 10’ (3.0 m)
• Minimum Required Total Anchor Weight: 4,400 lb. (2,000 kg)
• Anchor Rings: 4
• Accessory Attachment D-rings: 5 each on 2 ends
• Included: Ridgeway 20, cover, repair kit
• Not Included: Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump

Note: Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

Warranty

3-year limited against any manufacturing defects.
